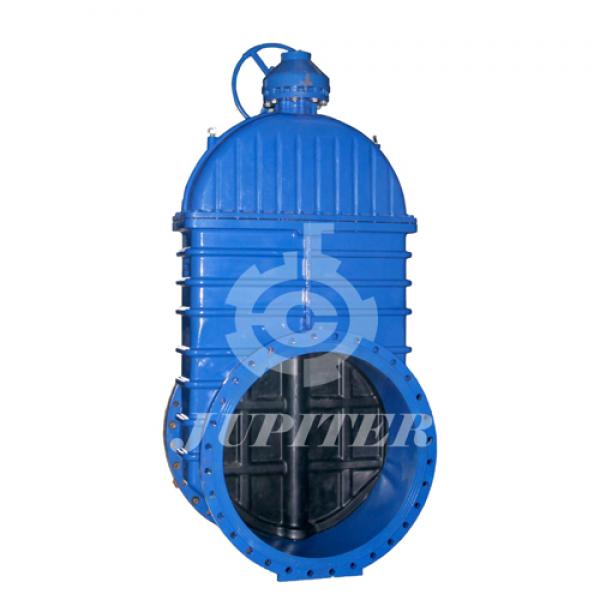

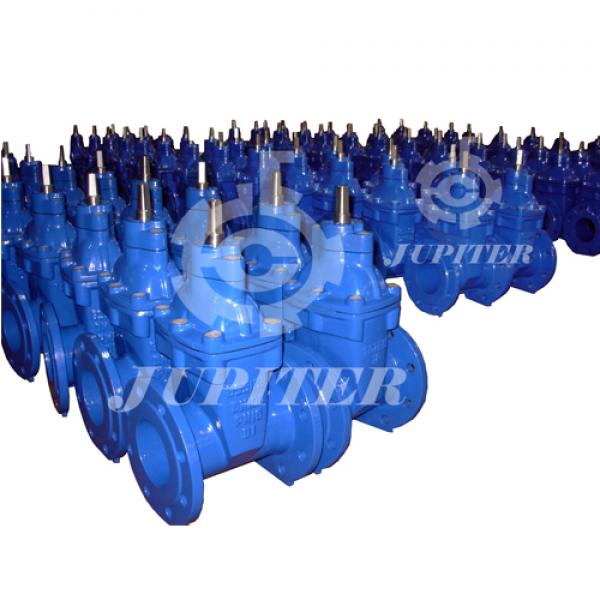

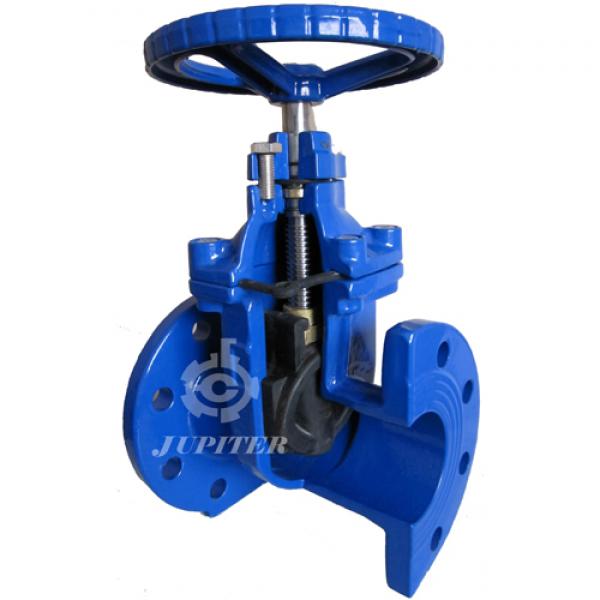

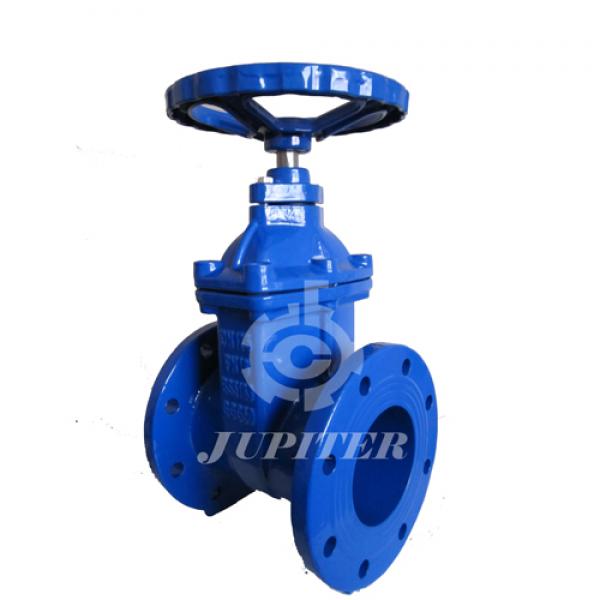

Resilient seated gate valve

STANDARD SPECIFICATION

Size Range

50mm to 600mm

Mfg./Design Std.

AWWA C509 / DIN 3352 / ISO 5752

Pressure Rating

PN 10 /PN 16 & PN 25

Type of valve

Non Rising / Rising Stem

Flanged End

IS: 1538 (Tab-6), On request – BS/NASI/AWWA/DIN/BSEN/ISO

Face to Face Dimension

IS: 14846 (PD) /BS 5163 or ANSI B 16.10

Body & other D.I. parts

D.I. to GGG – 40 /50 or Eqiv. IS/BS/ASTM grade

Wedge

D.I. (Fully Encapsulated with EPDM)

Stem

S.S. to AISI – 420 or SS 304/316

Special Feature

• Fusion Bonded Epoxy coating (250 microns)

Actuation

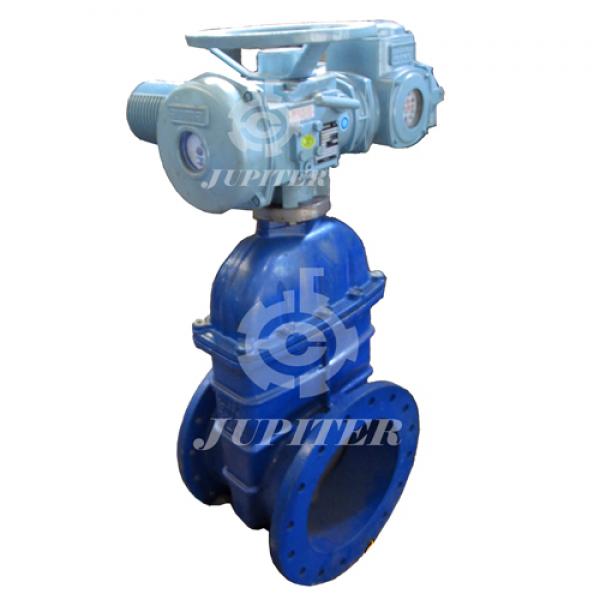

H/Wheel, Gear, Electrical Actuator
